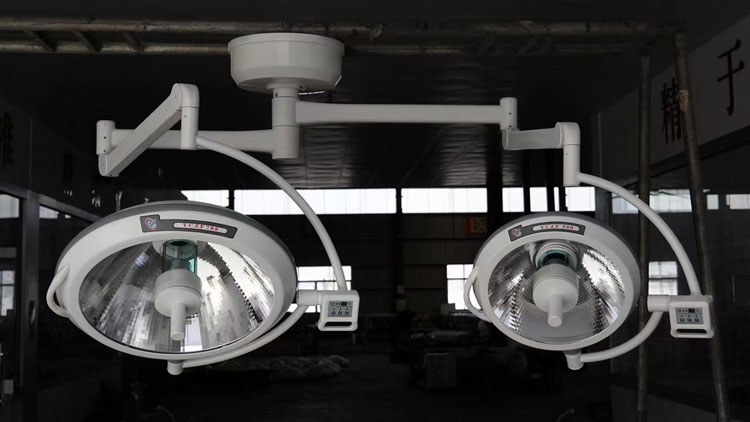

YCZF700500 Ceiling Mounted Double Heads Halogen Surgical Light

YC series surgical light can widely be used in diversified operation occasion to meet the demand of the illumination, and it is the ideal illumination instrument of the modern operating theater.

Features:

1.The Whole reflection optical system is made by CAD/CAM technology, its illumine depth is up to 1200mm ;by using color temperature compensation technology, the color reversion is uprised, and it is more suitable for the illumination of the complex surgery such as encephalon surgery and thorax surgery.
2.Micro computer digital control, with 8 shifts luminance for selection and it offers illuminance memory funcition and wide voltage working speciality, cam work stably under AC 150V~250V, with strong anti-jamming capacity.
3.Full close streamline lamp body design completely meets the demand of the sterilization and high standard of laminar flow purification in the operation room.
4.The panel is made of German PC (anti-bullet plastic) by injection moulding, makes the light softer and more reliable.
5.Focusing system has a delicate structure, and easy to change bulb and the ceramic seat; detachable handle cover can take high temperature (≤180°) sterilization treatment.
6.With back up bulb automatic switch function, when the main bulb was burnt, auxiliary lamp will be lighted in 0.2 second. There’s failure indication in the handle control panel, to remind the bulb to be changed after operation.
7.Offering soft start up unit, extending the serve life of the bulb effectively. Adopting the imported long life halide-tungsten bulb, the bulb life can be up to 1000 hours.
8.All the key parts use the world famous products, ensure stable and reliable operation; flame retardant level material can endure high temperature and safe, meets IEC norm.
9.Equipped with imported balance arm suspension system, which is light and handy, six group joints move together and moves smoothly, positions stablely. 360° universal design can satisfy various needed height and angle in the operation.

Specification:

https://miorelaxants-info.com

	YCZF700	YCZF500
Diameter Of Lamp Cap	700mm	500mm
Illumination Intensity	180,000 Lux	160,000 Lux
Color Temperature	4300±500 K	4300±500 K
Light Spot Diameter	100-300 mm	100-300 mm
Depth of Focus	≥1200 mm	≥1200 mm
Brightness Adjustment (Stepless)	1-100	1-100
Color rendering index	≥97Ra	≥97Ra
Temperature increase at operation area	＜2℃	＜2℃
Temperature increase over surgeon’s head	＜1℃	＜1℃
Radius of operation	≥2200mm	≥2200mm
Radius of working	600-1800mm	600-1800mm
Power Supply	AC100-240V 50/60Hz	AC100-240V 50/60Hz
Input Power	400VA	400VA
Bulb Life-span	≥1,000 hours	≥1,000 hours
Lamp Power	150W	150W
Back-up Bulb switching time	0.2 sec	0.2 sec
Best Install Height	2800-3000mm	2800-3000mm
